99.9% Purity 70um Spherical Alumina Powder,Alumina Spheres,SA-T series
Product Description
Parameters Table
Application
Spherical Alumina Powder
SA-T-70
Features
High spheroidization ratio, High filling ratio, High thermal conductivity, Trace ionic impurities.
Physical Characteristics

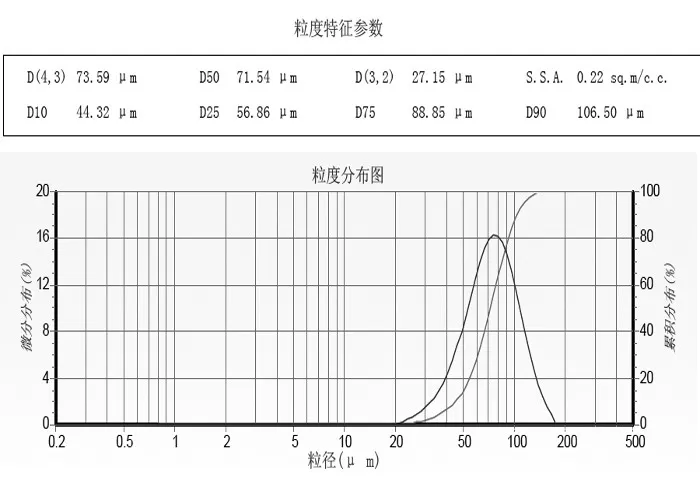

| Item | Unit | Typical Value | Method/Device | |
|
Particel Size |
D10 |
μm |
44.32 |
Light Scattering/OMEC LS-POP(6) |
| D50 | 71.54 | |||
| D90 | 106.50 | |||
|
Particel Size |
D10 |
μm |
49.94 |
Light Scattering/HORIBA LA-950v2 |
| D50 | 78.42 | |||
| D90 | 114.39 | |||
| S.S.A. | m2/g | 0.16 | 3H-2000A Specific Surface Area Analyzer | |
| E.C. | μs/cm | 6.18 | Mettler FE-30 Conductivity Meter | |
| pH | - | 7.70 | Mettler FE-20 Ph Meter | |
| Moisture | % | 0.05 |
Halogen water-determination meter/ (110℃/10min) |
|
| True Density | g/cm3 | 3.87 | 3H-2000TD True Density Analyzer | |
| Spheroidization | % | 96 | Microscopic Observation | |
